Home » Products » Residential and rural fences » Welded Mesh Fencing Lux

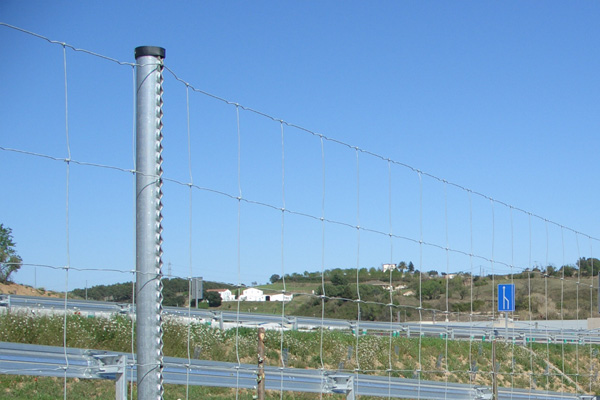

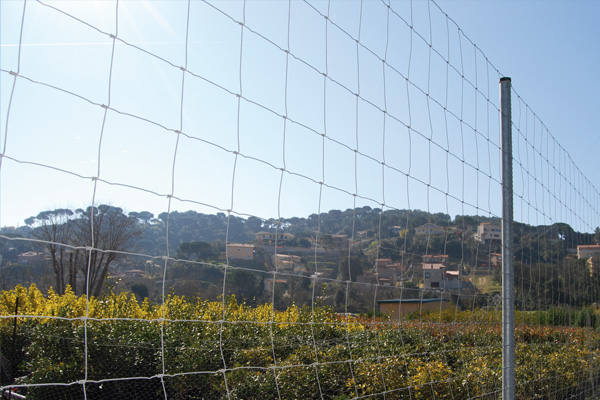

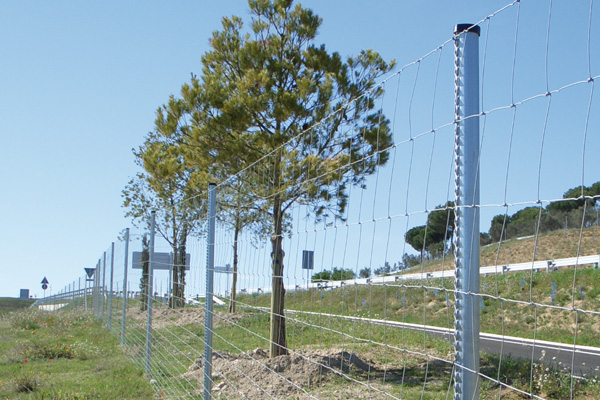

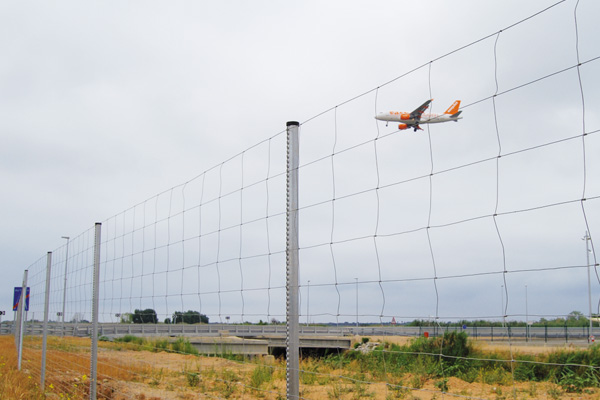

KNOTTED MESH LUX FENCE

OUTSTANDING

  • Easy to handle versatile enclosure
  • Long useful life
  • Enclosure for large areas

TECHNICAL FEATURES

A reliable, economic mesh for enclosing large spaces, made of rectangular knotted mesh, wire with triple galvanized protection (240gr Zn/m2), upper and lower diameter of 2,40mm and the rest of the wire has a diameter of 1,90mm. Variable distances between the vertical wires (see table of characteristics).

Lux type post 50 or Lux 80, depending on heights, provided with longitudinal rack for fixing accessories and the necessary clamps to bear the tension of the wires and meshes. Low carbon sheet, in accordance with the EN-10142 standard. Pull strength of 300 to 500 N/mm2. Accessories coupled to the rack by anchoring screw. Polypropylene cap which is resistant to atmospheric agents. Galvanized, reinforced wire staple, anchored vertically to the rack for preventing it from slipping lengthways.



  • Imagen 2
  • Imagen 3
  • Imagen 4
